Sovol SV08 Core-XY 3D Printer

Sovol SV08 Core-XY 3D Printer

$250.95 USD
$423.82 USD $250.95 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The SV08 is a high-performance 3D printer engineered for speed, precision, and large-scale printing. With a maximum print speed of 700 mm/s and acceleration up to 40,000 mm/s², it delivers fast, high-quality prints even for large, complex projects. Its generous 350 × 350 × 345 mm build volume, all-axes linear rails, and Quad-Gantry-Leveling make it ideal for professionals, makers, and businesses seeking reliability, versatility, and efficiency.

Equipped with a built-in camera, remote control capabilities, and a rapid heating system, the SV08 offers a seamless printing experience with a wide range of filaments.

Key Features

Feature Description
Ultra-High Speed Maximum print speed up to 700 mm/s with acceleration up to 40,000 mm/s²
Large Build Volume 350 × 350 × 345 mm³ allows unrestricted design freedom
Built-in Camera Monitor prints in real time and capture time-lapse footage
All-Axes Linear Rails Linear rails on all 7 axes (4Z + 2Y + 1X) ensure smooth, precise motion
Quad-Gantry-Leveling (QGL) 4 independent Z motors automatically level gantry for consistent prints
Efficient Heating Kit Ceramic plate heating and high-flow nozzle heat to 300 °C rapidly, AC heated bed reaches 220 °C in 40 seconds
Remote Control Connect via Wi-Fi or Ethernet for easy monitoring and management
Planetary Gear Extruder Provides precise, reliable filament feeding
Filament Sensor Detects filament run-out to resume printing without errors

Printing Specifications

Parameter Specification
Build Volume 350 × 350 × 345 mm³
Max Printing Speed 700 mm/s
Max Acceleration 40,000 mm/s²
Flow Rate ≤30 mm³/s
Printing Accuracy ±0.1 mm
Layer Height 0.08–0.36 mm
Auto-Leveling Inductive & pressure sensors

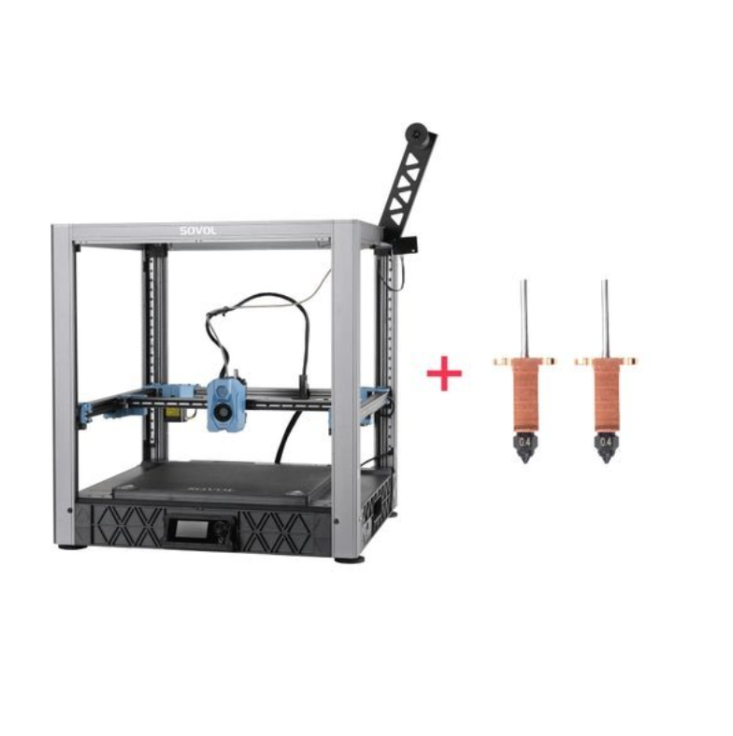

Nozzle Diameter 0.4 mm included (options: 0.2, 0.6, 0.8 mm)
Nozzle Temperature ≤300 °C
Heated Bed Temperature ≤100 °C
Filament Diameter 1.75 mm
Supported Filaments PLA, PETG, TPU, PETG-CF, ABS, etc.
Compatible Slicers OrcaSlicer, Cura, PrusaSlicer, Simplify3D
File Format G-code

Mechanical & Physical Specifications

Parameter Specification
Printer Dimensions 550 × 537 × 575 mm (includes screen & filament holder)
Build Plate PEI Steel Plate
Extruder Planetary gear extruder
Camera Built-in for monitoring & time-lapse
Connectivity Ethernet, Wi-Fi (2.4 GHz, WPA2)
Power Supply 150 W / 24 V

Electronics & System

Parameter Specification
System Architecture 64-bit
CPU H616
RAM 1 GB
Flash Memory 8 GB EMMC
Stepper Driver TMC2209
Operating System Windows, Linux, Mac

The SV08 is a professional-grade, high-speed, and versatile 3D printer ideal for large-scale production, rapid prototyping, and complex projects, offering a balance of speed, precision, and material compatibility.
