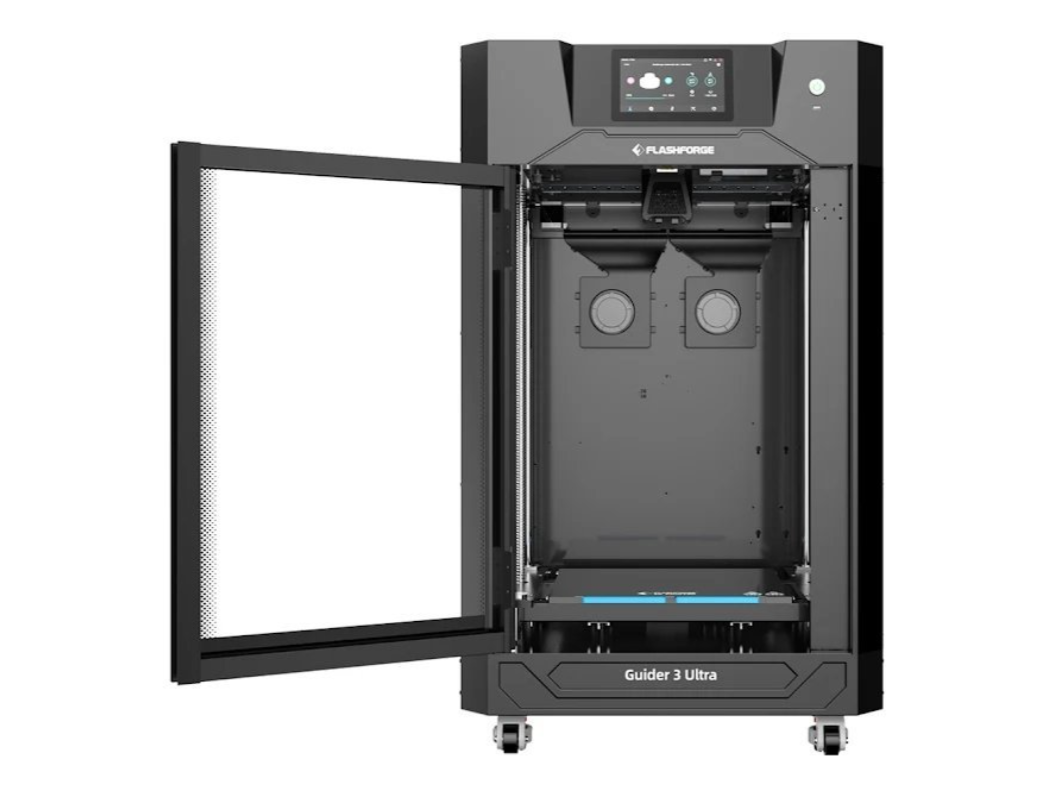

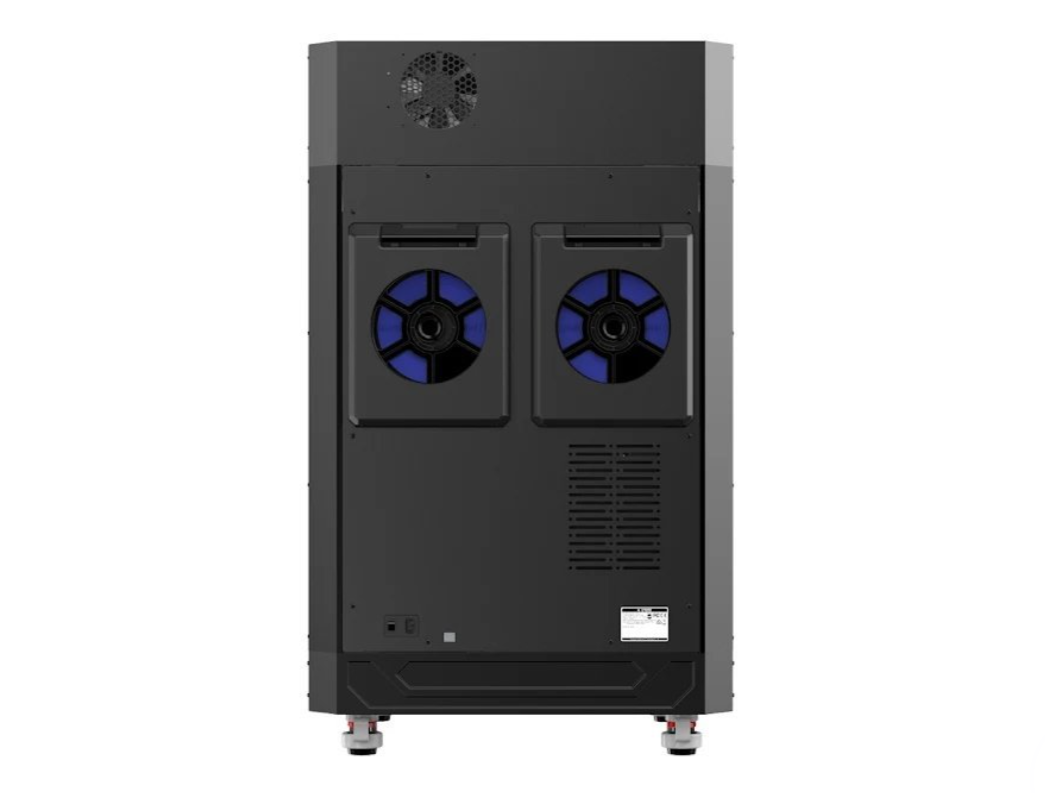

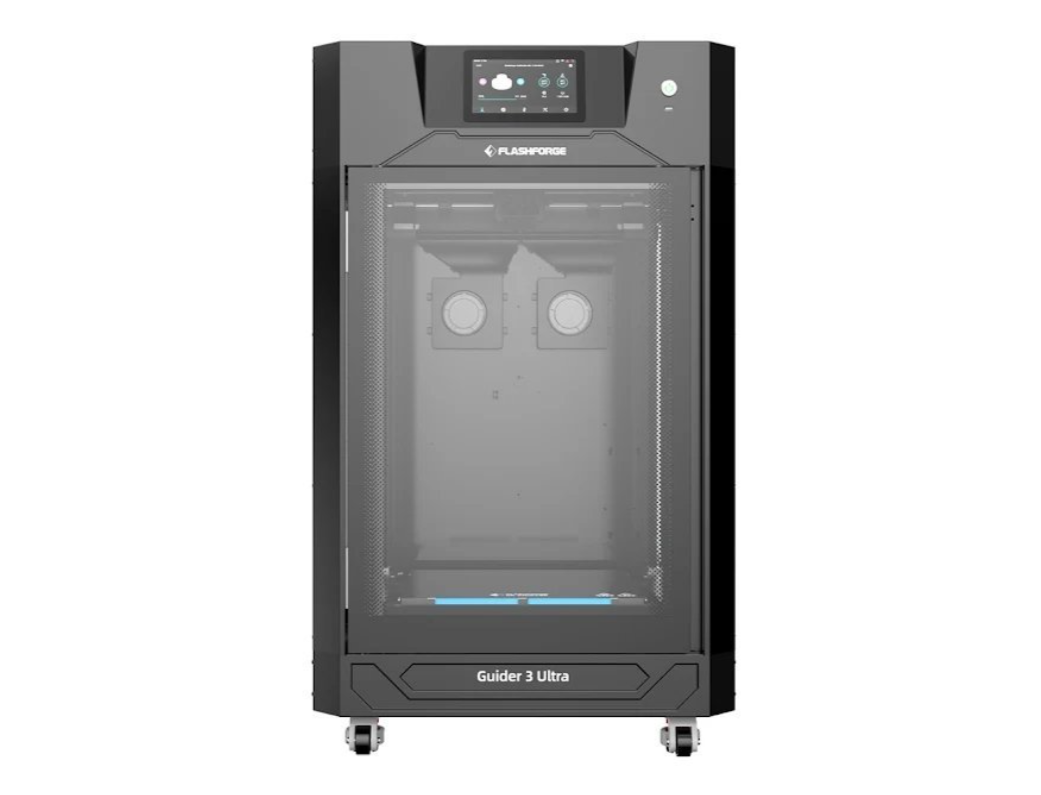

Flashforge Guider 3 Ultra

Flashforge Guider 3 Ultra

$1,533.57 USD
$2,602.42 USD $1,533.57 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The FlashForge Guider 3 Ultra is a commercial-grade 3D printer designed for high-speed, high-precision, and reliable additive manufacturing. Its CoreXY design delivers smooth motion, quiet operation, and stable large-format printing, making it perfect for professional workshops, prototyping, and production environments.

With dual extrusion support, a filament drying chamber, HEPA 13 air filtration, and flexible steel build plate, the Guider 3 Ultra provides efficiency, durability, and clean operation in one versatile package.

Key Features

Feature Description
High-Speed Printing Print speeds up to 500 mm/s with CoreXY motion system
Precision & Stability Extremely sturdy Z-axis guides and ball screws; ±0.15 mm print precision
Dual Extrusion Support Optional multi-material or color printing
Filament Management Built-in filament drying chamber; passive storage chambers
Air Filtration HEPA 13 system ensures safer indoor operation
Flexible & Removable Build Plate Steel plate allows easy part removal and secure adhesion
High-Temperature Extruder Max temperature 350 °C; quick-release nozzle for easy changes
Quiet Operation CoreXY design and stable frame minimize noise
Connectivity USB cable, USB stick, Wi-Fi, Ethernet
Software Compatibility FlashPrint, Slic3r, Skeinforge, Cura (setup required), Simplify3D (coming soon)

Printing Specifications

Parameter Specification
Build Volume 330 × 330 × 600 mm
Layer Thickness 0.05–0.4 mm
Printing Precision ±0.15 mm or 0.002 mm/mm
Position Precision X/Y: 0.011 mm; Z: 0.0025 mm
Nozzle Diameter 0.4 mm standard (optional 0.6 mm / 0.8 mm)
Max Extruder Temperature 350 °C
Adjustable Heated Build Plate Up to 110 °C
Filament Diameter 1.75 mm
Filament Compatibility PA-CF, PA-GF, PETG-CF, PETG-GF, PA, PC, ABS, ASA, HIPS, PLA-CF, PETG, PLA
Print Speed 10–500 mm/s

Mechanical & Physical Specifications

Parameter Specification
Number of Extruders 1 (dual optional)
Printer Dimensions 496 × 436 × 696 mm (19.5 × 17 × 27 in)
Packaging Dimensions 585 × 530 × 760 mm (23 × 21 × 30 in)
Net Weight 27 kg (60 lbs)
HD Touchscreen 4.3-inch

Electrical & Connectivity

Parameter Specification
Power Supply AC 100–240 V / DC 24 V / 20.8 A, 650 W
Connectivity USB cable, USB stick, Wi-Fi, Ethernet
Certification CE / FCC / RoHS

Software

Parameter Specification
Default Software FlashPrint
Compatible Slicing Software Slic3r, Skeinforge, Cura (setup required), Simplify3D (coming soon)
File Input Formats STL, 3MF, OBJ, FPP, BMP, PNG, JPEG
File Output Formats GX, G, G-code
